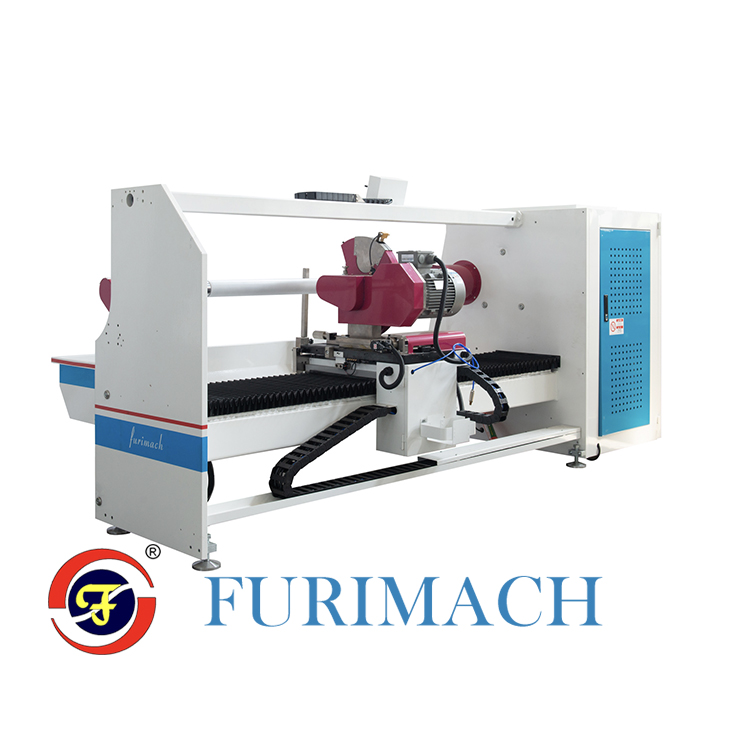

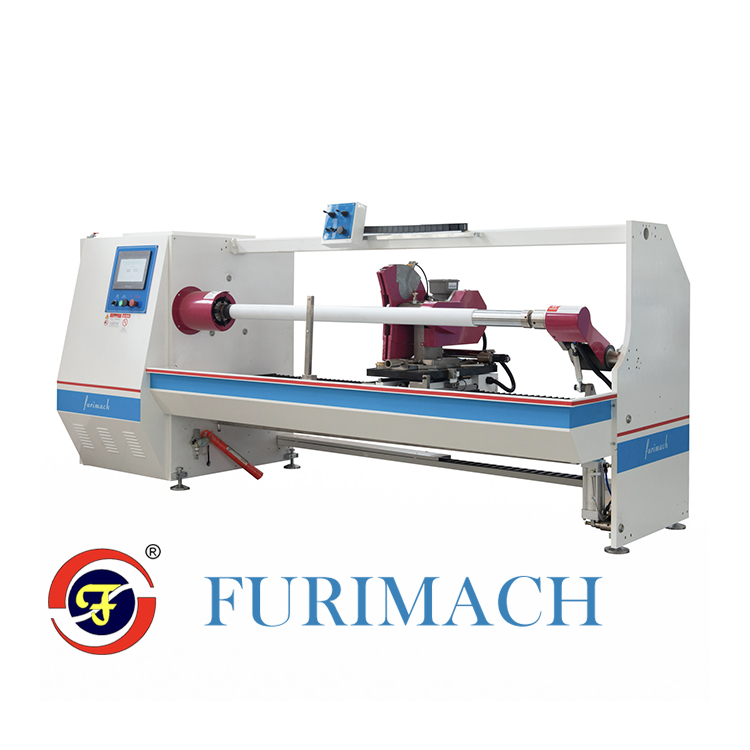

FCA Single Shaft Auto Log Roll Cutting Machine

  • 所属分类:英文版机型
  • 发布日期:2021-09-14 14:19:57
24小时免费咨询热线: 400-1651888
  • 产品概述



Feature

1. Main driving part

Siemens AC motor with inverter is employed.

2. Central control unit

Programmable central control is used and 55 sizes can be set on the same shaft for auto transfer and cutting.

3. Operating panel

All functions are operated on the 10"LCD touch panel.

4. Motor control system

The central control system is PLC programmable controller.

5. Cutting positioning system:

Cutting positioning is controlled by Mitsubishi servo motor. The imported high precision ball screw is applied to set the size and the linear slide rail is to bear the load of the cutter seat.

6. Blade feeding positioning system

Blade feeding is controlled by Mitsubishi servo motor, and the cutting speed is adjustable in three stages.

7. Auto angle adjustment of circular blade

Mitsubishi servo motor is used to calculate the circular blade angle and the angle change is subject to different materials (the angle change range is ±8°).

8. Quick shaft change system:

Three kinds of shafts are available and quick change of shafts is applied for different materials.

Optional Parts

1. Other size cutting shaft

It can be made as per the required core I.D.

2. Cutting supporter

For supporting log roll when cutting core below 38mm.

3. Auto blade grinder

It can keep the blade sharp for easy operation.

4. Safety cover

To protect operator during the production this is compliant to the CE regulation.

Main Technical Parameters


Machine width

1.3M 1.6M

Cutting precision

+/-0.1mm

Max. Blade O.D.

450mm

Min. Cutting width

1mm

Inner core I.D.

1"-3"


FAQ

1)What is your delivery time?

1.3 m wide machine 35 workdays, 1.6m 45 working days.

2) What is the warranty period?

All the machines we provided have one year warranty. If any parts include the motor, inverter, PLC get broken in one year, we'll send you a new one free of charge. Easily wearing parts such as circular blade, sensor, etc. are excluded. Ps: we will offer life long service, even after one year, we’re always here to help out.

3)How you pack the machine before delivery?

After the clean and lubrication work, we will put desiccant inside and wrap the machine by anti-rust plastic bag, then pack by the fumigated wooden case.

4)How to operate the machine?

First, we provide very detailed manual book. Second, you can watch machine operation step by step on our YouTube channel: furimach china ( http://www.youtube.com/c/ChinaFurimach

5)How about parameter setting?

If you need any parameter setting reference, please don’t hesitate to contact our sales team.
