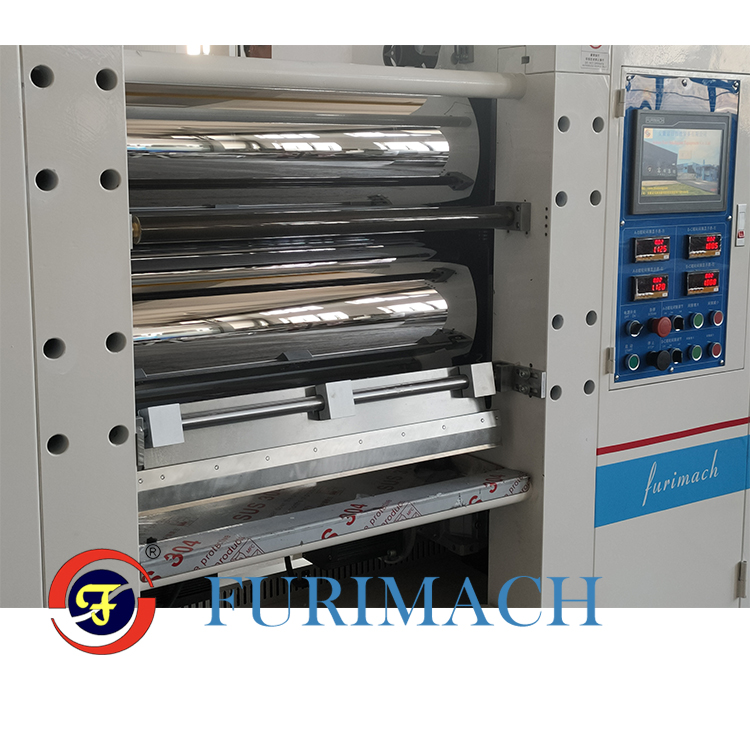

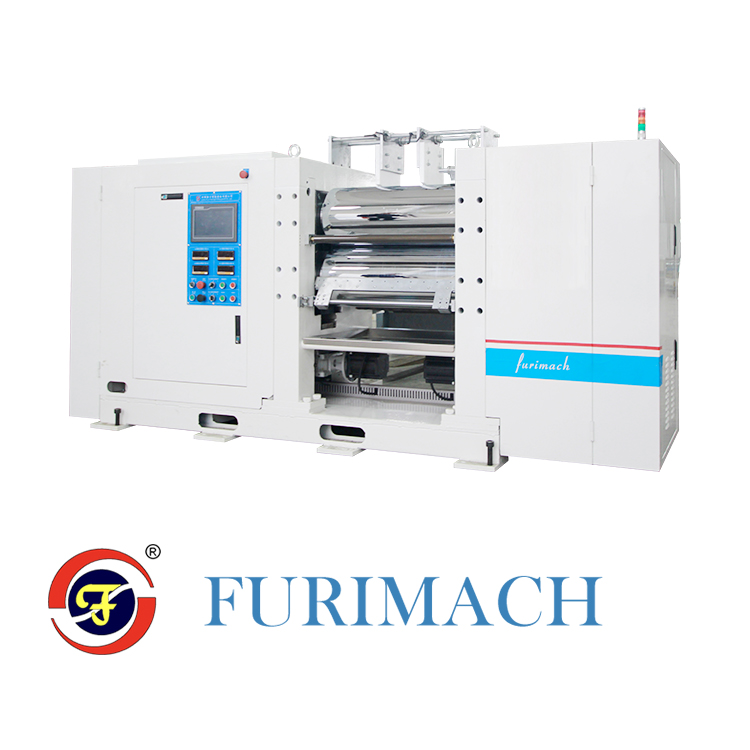

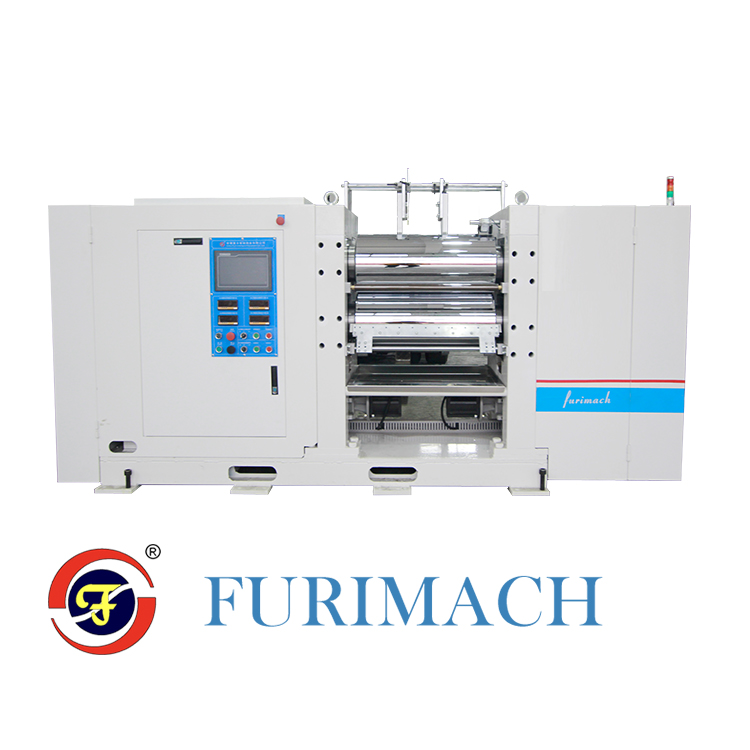

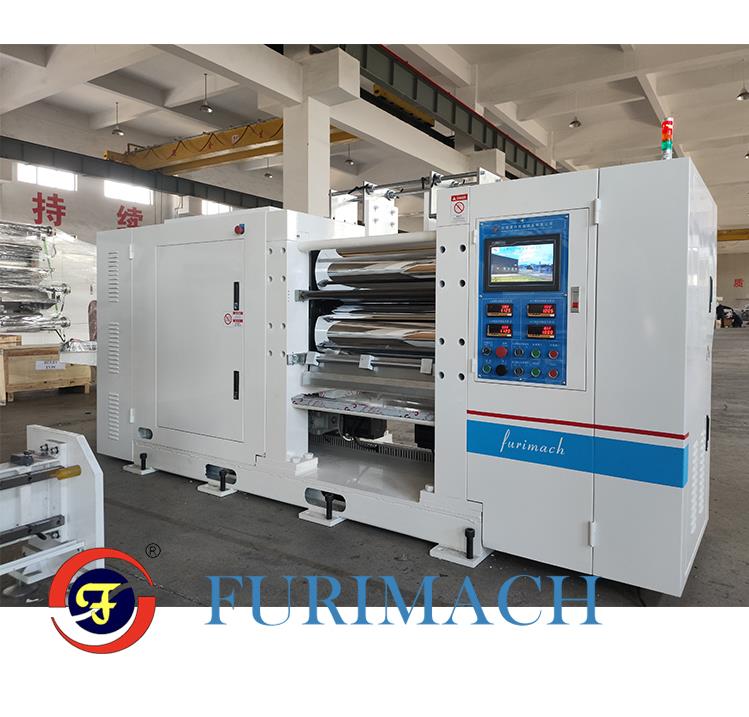

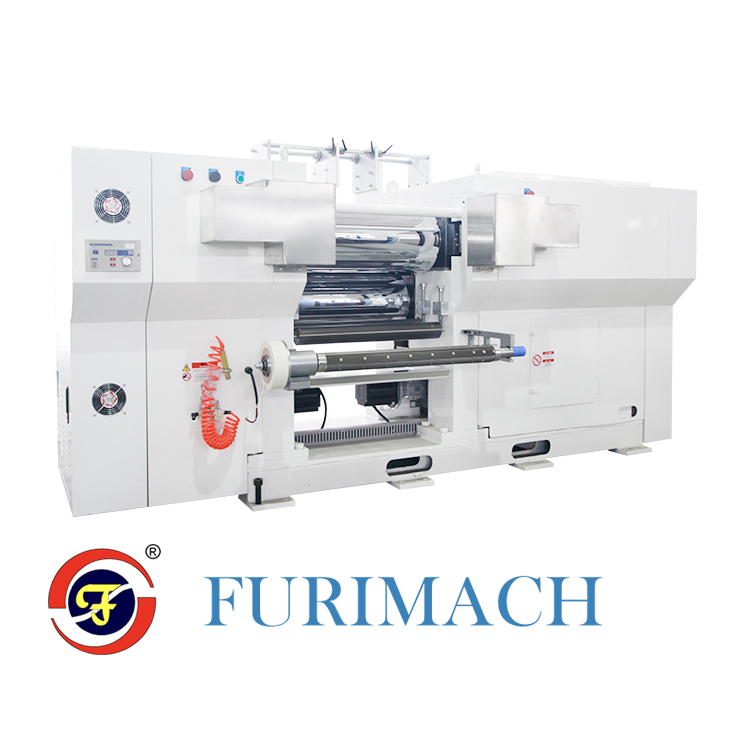

The three-roll silicone calender is a high-efficiency and precision calendering equipment specifically designed for elastic materials such as silicone. Through the coordinated operation of three rolls, the material is evenly calendered to the desired thickness, ensuring a smooth and defect-free surface. It is widely used in industries such as automotive, electronics, and medical fields for producing high-performance silicone sheets, seals, and other products.

Main Parameters

Production Width: 200-600mm

Input Thickness: 0-6mm

Calendering Thickness Accuracy:

0.4~1mm（±0.05mm）

1~2.5mm（±5%）, adjusted according to process characteristics

Mechanical Speed: 3-14m/min (with variable frequency speed control)

Power Supply: 380V 50Hz

Total Power: 29KW

Key Features

High Precision Control:

Calendering thickness accuracy up to ±0.05mm, meeting high-demand production processes.

Adjustable calendering gap of 0-3.2mm, supported by automatic wedge adjustment for easy operation.

Efficiency and Stability:

Mechanical speed adjustable from 3-14m/min, adaptable to different production needs.

Hydraulic double-cylinder design with single cylinder adjustable up to 100T, ensuring stable pressure.

Durability:

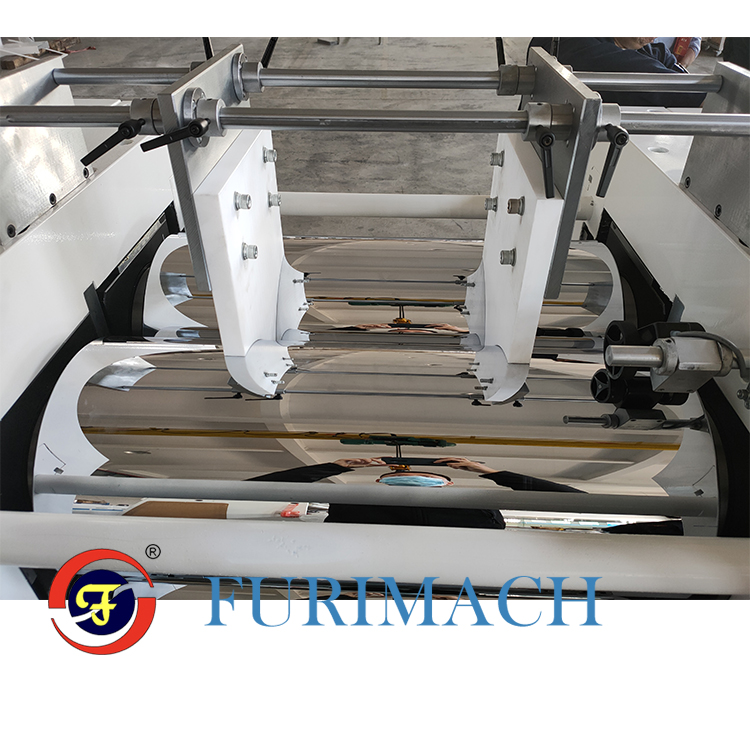

Calendering rollers are forged from alloy steel, with surface hardness of HRC60-62° and single-side hardness layer ≥10mm.

Roller surface is chrome-plated and mirror-polished, with a chrome layer of 0.1mm per side, extending service life.

Application Fields

Suitable for precision calendering of elastic materials such as silicone and rubber, widely used in automotive parts, electronic components, medical products, and other industries.

The three-roll silicone calender, with its high precision, efficiency, stability, and versatility, is an ideal equipment for silicone material processing, meeting diverse needs from laboratory to mass production.
