Application: it is suitable for various liquid, semi-solid thermal conductive silicone gaskets, phase change heat conducting gaskets, conductive silicon films, thermal conductive insulating gaskets and other thermal conductive silicone products.

Specification:

Machine width: 600mm

Machine speed: 1-10M/Min

Rewind core I.D.: 3"

Product thickness: (0.2-12)mm

Vulcanizing oven length: customized according to customer requirements

Feature:

The machine has excellent design structure, unique molding way and continuous and efficient production process.

Unwind part: multi-group unwind part to meet different needs of customers.

Molding part: the unique calendering coating combined design can meet the molding requirements of different viscosity, and it can produce efficiently.

Vulcanization part: heating mode with stainless steel electric heating pipe and many other choices, and multi section combination design to meet the customer's various use conditions, excellent quality of thermal insulation design, tunnel type vulcanization box with high temperature Teflon belt to meet the customer's different process requirements.

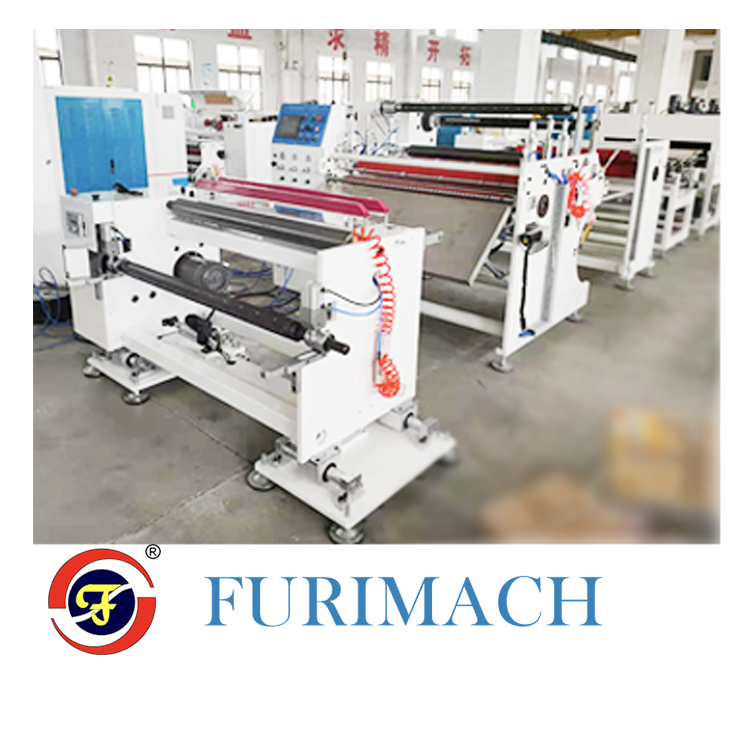

Cutting part: specialized multifunctional slicing machine is professionally designed which completes various functions of stripping, laminating, slicing and rewinding, space saving.

Control system: full digital control system, tension, clearance, speed, quantity and other regulatory data, all digital display, easy to standardize the establishment and experience dependence on the operator.
