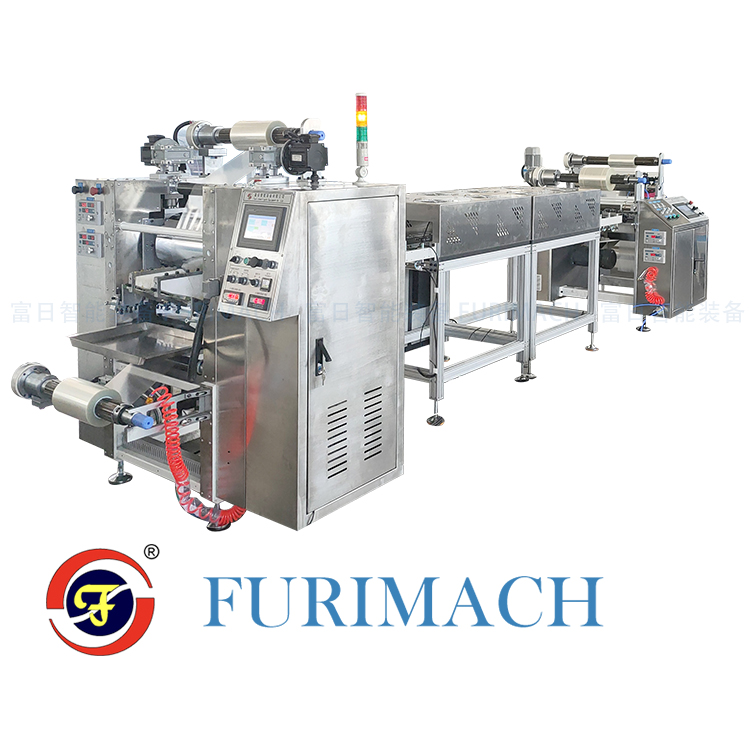

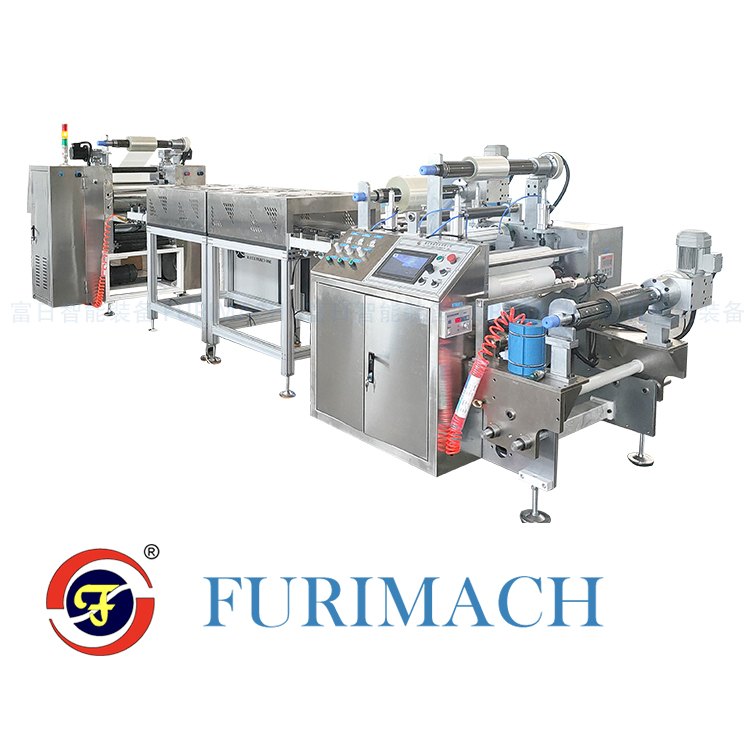

This production line is designed for the development process of hot melt adhesive production.

The equipment features controllable precision, simple operation, high level of intelligence, and one-button start/stop functionality.

This machine is suitable for calendering various materials such as liquid hot melt, phase change, and extruded hot melt.

The equipment is equipped with features including bottom film unwinding, top film unwinding,

product baffle, product feeding platform, product discharge inspection platform, and product thickness control.

The machine is characterized by simple operation, controllable thickness, stable precision, easy maintenance, and a refined appearance.

Customers can choose different processes based on the viscosity of the product to complete the coating and calendering process.

Technical Parameters:

Effective width of raw material: 400mm

Mechanical speed: Max 0~8M/min

Maximum unwinding diameter: One φ400mm, one φ200mm

Maximum winding diameter: φ400mm

Production speed: 0~7M/min (depending on material thickness and product requirements)

Total power: 35KW, 3-phase 380V (calendering 2KW, mold temperature machine 30KW, peeling traction 2KW)
