SLD-61522 High Speed Laminated Film Slitting Machine

  • 所属分类:英文版机型
  • 发布日期:2021-09-14 14:06:43
24小时免费咨询热线: 400-1651888
  • 产品概述

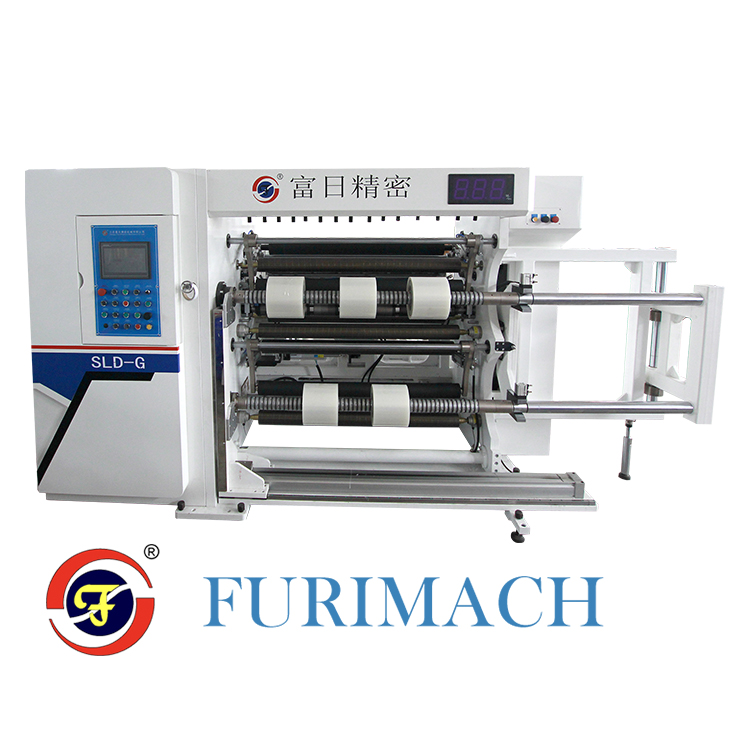

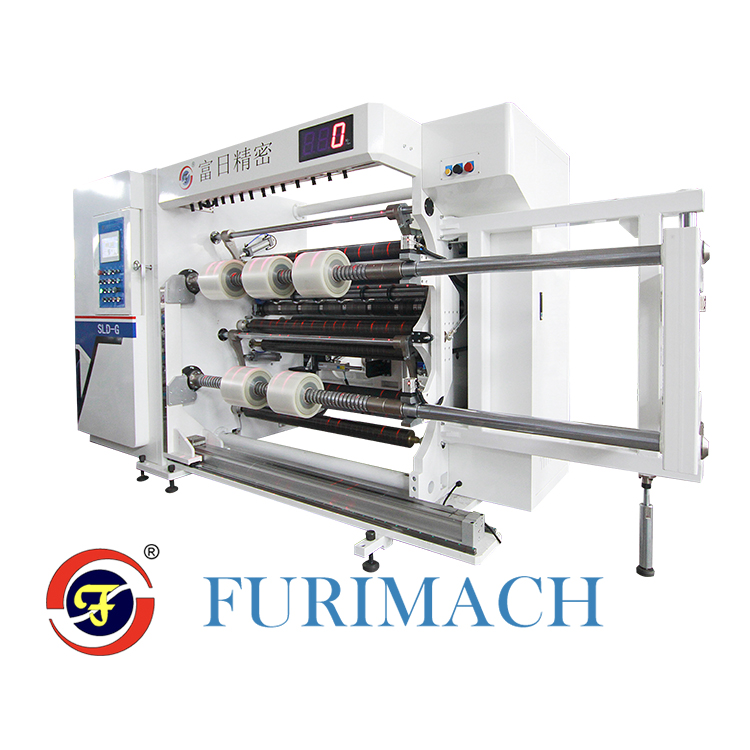

SLD-61522 High Speed Laminated Film Slitting Machine



Feature

l  Unwind unit: shaftless unwind stand with 3” & 6” cone chucks

l  Automatic web guide control: EPC/LPC

l  Automatic tension control

l  Rewind duplex differential shaft with slip ring fully arranged

l  Siemens PLC programmable control

l  10” touch panel to input parameters

l  Line speed up to 500meters per minute

l  Slitting unit: razor blade (standard) & shear blade (optional)

l  Edge trimming by blower (side type)

l  Infrared fray auxiliary core positioning system to save time

l  Auto push-off device with finished reel unloader system (optional)



Main Technical Parameters

Machine width

1.3M/1.6M

Min. slitting width

30mm

Max. unwind diameter

800mm

Max. rewind diameter

600mm

Max. speed

500M/min

Paper core I.D.

3 "/6 "

Power source

380V 50HZ 3P

Certification

CE
